FortiSIEM Configuration Guide for Malware Patrol Threat Intel Feeds

Malware Patrol offers the following threat intelligence feeds formatted for integration into FortiSIEM. This allows users to combine the quality of Fortinet’s SIEM security platform with the protection from our threat intelligence. Customers can choose the feed(s) that meet their needs:

We offer free evaluations of our Enterprise feeds, including those for FortiSIEM. To request your evaluation, complete our request form.

About FortiSIEM

“FortiSIEM brings together visibility, correlation, automated response, and remediation in a single, scalable solution. It reduces the complexity of managing network and security operations to effectively free resources, improve breach detection, and even prevent breaches. What’s more is that [the] architecture enables unified data collection and analytics from diverse information sources including logs, performance metrics, security alerts, and configuration changes. FortiSIEM combines the analytics traditionally monitored in separate silos of the security operations center (SOC) and network operations center (NOC) for a more holistic view of the security and availability of the business.” “FortiGuard Threat Intelligence and Indicators of Compromise (IOC) and Threat Intelligence (TI) feeds from commercial, open source, and custom data sources integrate easily into the security TI framework. This grand unification of diverse sources of data enables organizations to rapidly identify root causes of threats, and take the steps necessary to remediate and prevent them in the future. Steps can often be automated with new Threat Mitigation Libraries for many Fortinet products. External Threat Intelligence Integrations

  • APIs for integrating external threat feed intelligence – Malware domains, IPs, URLs, hashes, Tor nodes
  • Built-in integration for popular threat intelligence sources – ThreatStream, CyberArk, SANS, Zeus, ThreatConnect
  • Technology for handling large threat feeds – incremental download and sharing within cluster, real-time pattern
    matching with network traffic. All STIX and TAXII feeds are     supported”

Adding External TI – A FortiSIEM Configuration Guide

The following are instructions to configure each of our data feeds on FortiSIEM version 6.4.0 (1412) using the web interface.

DNS-over-HTTPS (DoH) Domains

Benefits of the Malware Patrol DoH Data Feed

We developed this feed to help security teams monitor the use of DoH in their environment. Our tools actively search for new DoH servers on a continuous basis to keep this data fresh. DoH allows users to bypass the DNS-level controls and internet usage policies put in place to protect your network against known threats and threat actors are taking advantage of this by using DoH for C2 server connections, for example. As such, both incoming and outgoing DoH traffic should be closely monitored for indications of malicious activity.

Intro Step in the the Malware Patrol Fortisiem configuration guide

1) From the FortiSIEM dashboard, navigate to Resources in the top navigation menu. On the left side menu that appears, you will see the types of IoC feeds that can be integrated.

2) Select Malware Domains from the menu on the left.

3) Click + button at the upper left-hand side of this side menu to add a new Malware Domains group. Step 3 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post

4) Enter a group name. We will use Malware Patrol – DoH to distinguish this feed from the Malware Patrol Malicious Domains previously entered.

5) Click save. The Malware Patrol – DoH group will now appear under the Malware Domains section. Step 5 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post

6) Select/highlight the Malware Patrol group and then More from the top menu.

7) Select Update from the drop-down menu. Step 7 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post

8) On the screen that pops up choose Update via API and click on the edit (pencil) button. Step 8 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post

9) Enter the following to set up the feed update:

  • URL of your Malware Patrol DoH feed or evaluation feed. This can be obtained by right clicking on the feed’s link in the Malware Patrol customer or evaluation portal.
  • Your Malware Patrol portal username and password
  • Plugin Class: no changes
  • Field separator: ,
  • Data format: CSV
  • Data update: Full

Step 9 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post 10) In the Data Mapping section, match the following:

  • Domain Name, Position 1
  • Description, Position 2
  • Last Seen, Position 3

11) Click Save Step 11 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post

12) Click on the Schedule: + button Step 12 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post

13) On the screen that pops up, enter:

  • Start Time: Set a start time a few minutes from the current time. This will cause the data to be updated after your setup is complete
  • Recurrence Pattern: Hourly, Every 1 Hour (Malware Patrol feeds are updated on an hourly basis)
  • Recurrence:
    • Start From: Today’s Date
    • End Date: No End Date
  • Click Save

Step 13 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post 14) The data will populate at the start time set above. If it does not, click the Refresh button at the top of the data display area. Another option is to go back to the schedule settings to verify the time you set for the updates to begin. You can set another time a few minutes in the future. Step 14 in the DNS-over-HTTPS (DoH) Domains section of the Malware Patrol Fortisiem configuration guide blog post

15) To change the columns displayed once the data populates, click on the Select Columns button located beside the refresh button. Use the data mapping information from the setup process to know which fields are available in the Malware Patrol feed.

Malicious Domains

Benefits of the Malware Patrol Malicious Domains Data Feed

This Malware Patrol feed contains domains actively involved in malicious activities. The data is derived from five of our Enterprise feeds: 1) Anti-Mining, 2) Command & Control (C2) Addresses, 3) Domain Names Generated via DGAs, 4) Malware & Ransomware URLs, and 5) Phishing URLs. Network traffic associated with these domains is highly likely to be malicious.

Pre-step image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide

1) From the FortiSIEM dashboard, navigate to Resources in the top navigation menu. On the left side menu that appears, you will see the types of IoC feeds that can be integrated.

2) Select Malware Domains from the menu on the left.

3) Click + button at the upper left-hand side of this side menu to add a new Malware Domains group.

4) Enter a group name. We will use Malware Patrol for this guide.

5) Click save. The Malware Patrol group will now appear under the Malware Domains section.

Step 5 image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide 6) Select/highlight the Malware Patrol group and then More from the top menu.

7) Select Update from the drop-down menu.

Step 7 image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide 8) On the screen that pops up choose Update via API.

9) Click on the edit (pencil) button for the URL. Step 9 image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide

10) Enter the following to set up the feed update:

  • URL of your Malware Patrol Malicious Domains feed or evaluation feed. This can be obtained by right clicking on the feed’s link in the Malware Patrol customer or evaluation portal.
  • Your Malware Patrol portal username and password
  • Plugin Class: no changes
  • Field separator: ,
  • Data format: CSV
  • Data update: Full

Step 10 image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide 11) In the Data Mapping section, match the following:

  • Domain Name, Position 1
  • Malware Type, Position 2
  • Description, Position 3
  • Date Found, Position 4
  • Last Seen, Position 5

12) Click Save

Step 12 image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide

13) Click on the Schedule: + button

Step 13 image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide

14) On the screen that pops up, enter:

  • Start Time: Set a start time a few minutes from the current time. This will cause the data to be updated after your setup is complete
  • Recurrence Pattern: Hourly, Every 1 Hour (Malware Patrol feeds are updated on an hourly basis)
  • Recurrence:
    • Start From: Today’s Date
    • End Date: No End Date
  • Click Save

Step 14 image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide 15) The data will populate at the start time set above. If it does not, click the Refresh button at the top of the data display area. Another option is to go back to the schedule settings to verify the time you set for the updates to begin. You can set another time a few minutes in the future. Step 15 image in the Malicious Domains section of the Malware Patrol Fortisiem configuration guide

16) To change the columns displayed once the data populates, click on the Select Columns button located beside the refresh button. Use the data mapping information from the setup process for each feed to know which fields are available in the Malware Patrol feed.

Malicious IPs

Benefits of the Malware Patrol Malicious IPs Data Feed

This feed contains IP addresses known to actively host malicious files and C2 systems for malware and ransomware. Monitoring traffic destined to them is an effective network protection measure and provides valuable information for threat hunting purposes.

Pre-step image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

1) From the FortiSIEM dashboard, navigate to Resources in the top navigation menu. On the left side menu that appears, you will see the types of IoC feeds that can be integrated. Step 1 image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

2) Select Malware IPs from the menu on the left.

3) Click + button at the upper left-hand side of this side menu to add a new Malware IPs group.

4) Enter a group name. We will use Malware Patrol for this guide.

5) Click save. The Malware Patrol group will now appear under the Malware IPs section. Step 5 image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

6) Select/highlight the Malware Patrol group and then More from the top menu.

7) Select Update from the drop-down menu. Step 7 image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

8) On the next screen, choose Update via API and click on the edit (pencil) button. Step 8 image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

9) Enter the following to set up the feed update:

  • URL of your Malware Patrol Malicious IPs feed or evaluation feed. This can be obtained by right clicking on the feed’s link in the Malware Patrol customer or evaluation portal.
  • Your Malware Patrol portal username and password
  • Plugin Class: no changes
  • Field separator: ,
  • Data format: CSV
  • Data update: Full

Step 9 image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

  •

10) In the Data Mapping section, match the following:

  • Name, Position 1
  • Low IP, Position 2
  • Malware Type, Position 3
  • Description, Position 4
  • Date Found, Position 5
  • Last Seen, Position 6

11) Click Save

12) Click on the Schedule: + button Step 12 image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

13) On the next screen, enter:

  • Start Time: Set a start time a few minutes from the current time. This will cause the data to be updated after your setup is complete
  • Recurrence Pattern: Hourly, Every 1 Hour (Malware Patrol feeds are updated on an hourly basis)
  • Recurrence:
    • Start From: Today’s Date
    • End Date: No End Date
  • Click Save

Step 13 image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

14) The data will populate at the start time set above. If it does not, click the Refresh button at the top of the data display area. Another option is to go back to the schedule settings to verify the time you set for the updates to begin. You can set another time a few minutes in the future. Step 14 image in the Malicious IPs section of the Malware Patrol Fortisiem configuration guide

15) To change the columns displayed once the data populates, click on the Select Columns button located beside the refresh button. Use the data mapping information from the setup process for each feed to know which fields are available in the Malware Patrol feed.

Malware Hashes

Benefits of the Malware Patrol Malware Hashes Data Feed

This feed contains the SHA-1 hashes of malware and ransomware samples currently available on the internet. Encountering these signatures in your environment is a sign of malicious activity.

Pre-step image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

1) From the FortiSIEM dashboard, navigate to Resources in the top navigation menu. On the left side menu that appears, you will see the types of IoC feeds that can be integrated. Step 1 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

2) Select Malware Hash from the menu on the left.

3) Click + button at the upper left-hand side of this side menu to add a new Malware Hash group.

Step 3 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

4) Enter a group name. We will use Malware Patrol for this guide.

5) Click save. The Malware Patrol group will now appear under the Malware Hash section.

Step 5 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

6) Select/highlight the Malware Patrol group and then More from the top menu.

7) Select Update from the drop-down menu.

Step 7 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

8) On the next screen, choose Update via API and click on the edit (pencil) button.

Step 8 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

9) Enter the following to set up the feed update:

  • URL of your Malware Patrol Malware Hashes feed or evaluation feed. This can be obtained by right clicking on the feed’s link in the Malware Patrol customer or evaluation portal.
  • Your Malware Patrol portal username and password
  • Plugin Class: no changes
  • Field separator: ,
  • Data format: CSV
  • Data update: Full

Step 9 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

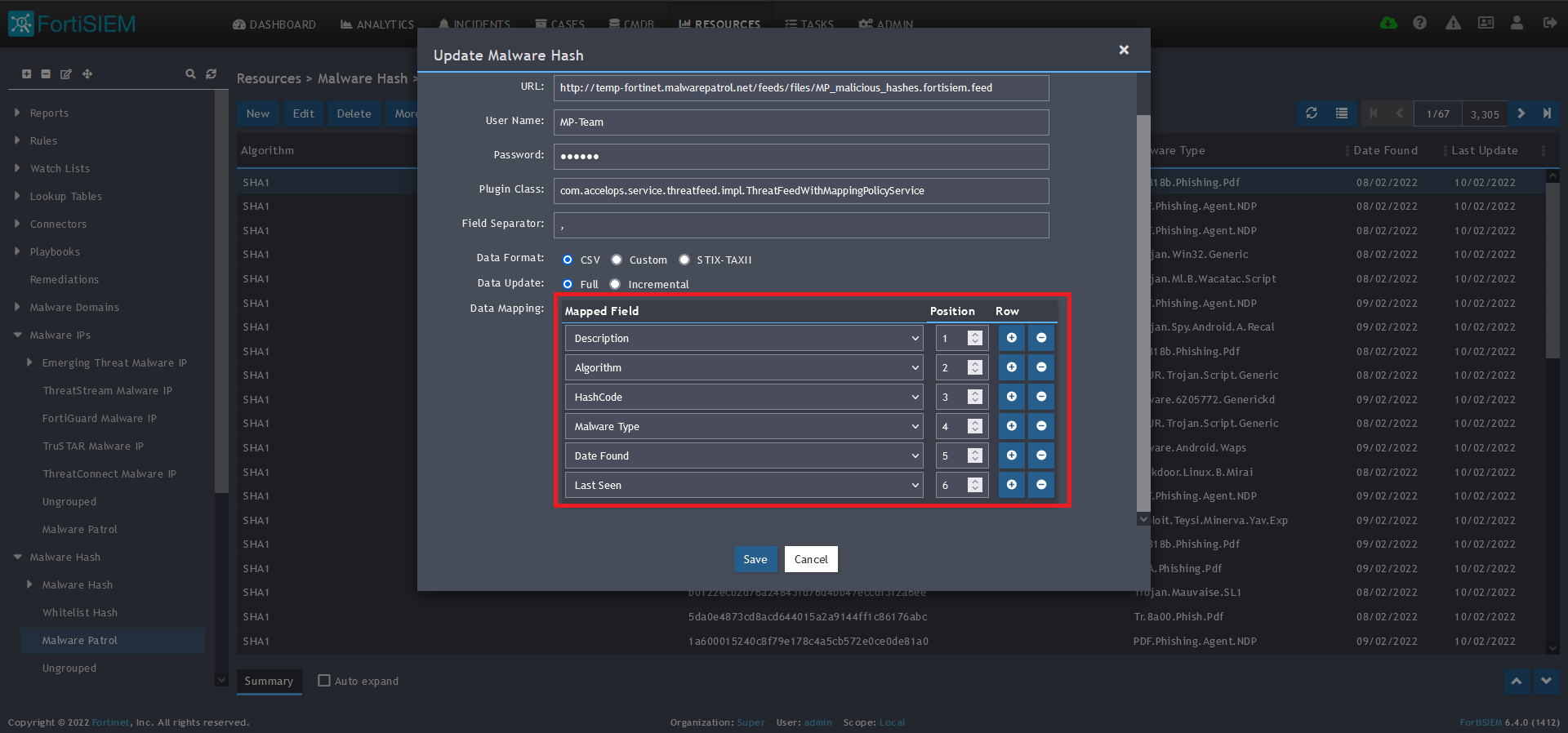

10) In the Data Mapping section, match the following:

  • Description, Position 1
  • Algorithm, Position 2
  • HashCode, Position 3
  • Malware Type, Position 4
  • Date Found, Position 5
  • Last Seen, Position 6

11) Click Save

Step 11 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

12) Click on the Schedule: + button

Step 12 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

13) On the next screen, enter:

  • Start Time: Set a start time a few minutes from the current time. This will cause the data to be updated after your setup is complete
  • Recurrence Pattern: Hourly, Every 1 Hour (Malware Patrol feeds are updated on an hourly basis)
  • Recurrence:
    • Start From: Today’s Date
    • End Date: No End Date
  • Click Save

Step 13 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

14) The data will populate at the start time set above. If it does not, click the Refresh button at the top of the data display area. Another option is to go back to the schedule settings to verify the time you set for the updates to begin. You can set another time a few minutes in the future. Step 14 image in the Malicious Hashes section of the Malware Patrol Fortisiem configuration guide

15) To change the columns displayed once the data populates, click on the Select Columns button located beside the refresh button. Use the data mapping information from the setup process for each feed to know which fields are available in the Malware Patrol feed.

Malware URLs

Benefits of the Malware/Ransomware URLs Data Feed

This feed contains URLs known to be hosting malware binaries. It is updated hourly to remove inactive URLs and add newly detected ones. Correlating this feed with network traffic can pinpoint a potential malware infection.

Pre-step image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

1) From the FortiSIEM dashboard, navigate to Resources in the top navigation menu. On the left side menu that appears, you will see the types of IoC feeds that can be integrated.

Step 1 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide 2) Select Malware URLs from the menu on the left.

3) Click + button at the upper left-hand side of this menu to add a new Malware URLs group.

Step 3 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide 4) Enter a group name. We will use Malware Patrol for this guide.

5) Click save. The Malware Patrol group will now appear under the Malware URLs section.

Step 5 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

6) Select/highlight the Malware Patrol group and then More from the top menu.

7) Select Update from the drop-down menu. Step 7 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

8) On the next screen, choose Update via API and click on the edit (pencil) button.

Step 8 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

9) Enter the following to set up the feed update:

  • URL of your Malware Patrol Malware URLs feed or evaluation feed. This can be obtained by right clicking on the feed’s link in the Malware Patrol customer or evaluation portal.
  • Your Malware Patrol portal username and password
  • Plugin Class: no changes
  • Field separator: ,
  • Data format: CSV
  • Data update: Full

Step 9 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

10) In the Data Mapping section, match the following:

  • URL, Position 1
  • Malware Type, Position 2
  • Last Seen, Position 3

11) Click Save Step 11 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

12) Click on the Schedule: + button Step 12 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

13) On the next screen, enter:

  • Start Time: Set a start time a few minutes from the current time. This will cause the data to be updated after your setup is complete
  • Recurrence Pattern: Hourly, Every 1 Hour (Malware Patrol feeds are updated on an hourly basis)
  • Recurrence:
    • Start From: Today’s Date
    • End Date: No End Date
  • Click Save

Step 13 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

14) The data will populate at the start time set above. If it does not, click the Refresh button at the top of the data display area. Another option is to go back to the schedule settings to verify the time you set for the updates to begin. You can set another time a few minutes in the future. Step 14 image in the Malware URLS section of the Malware Patrol Fortisiem configuration guide

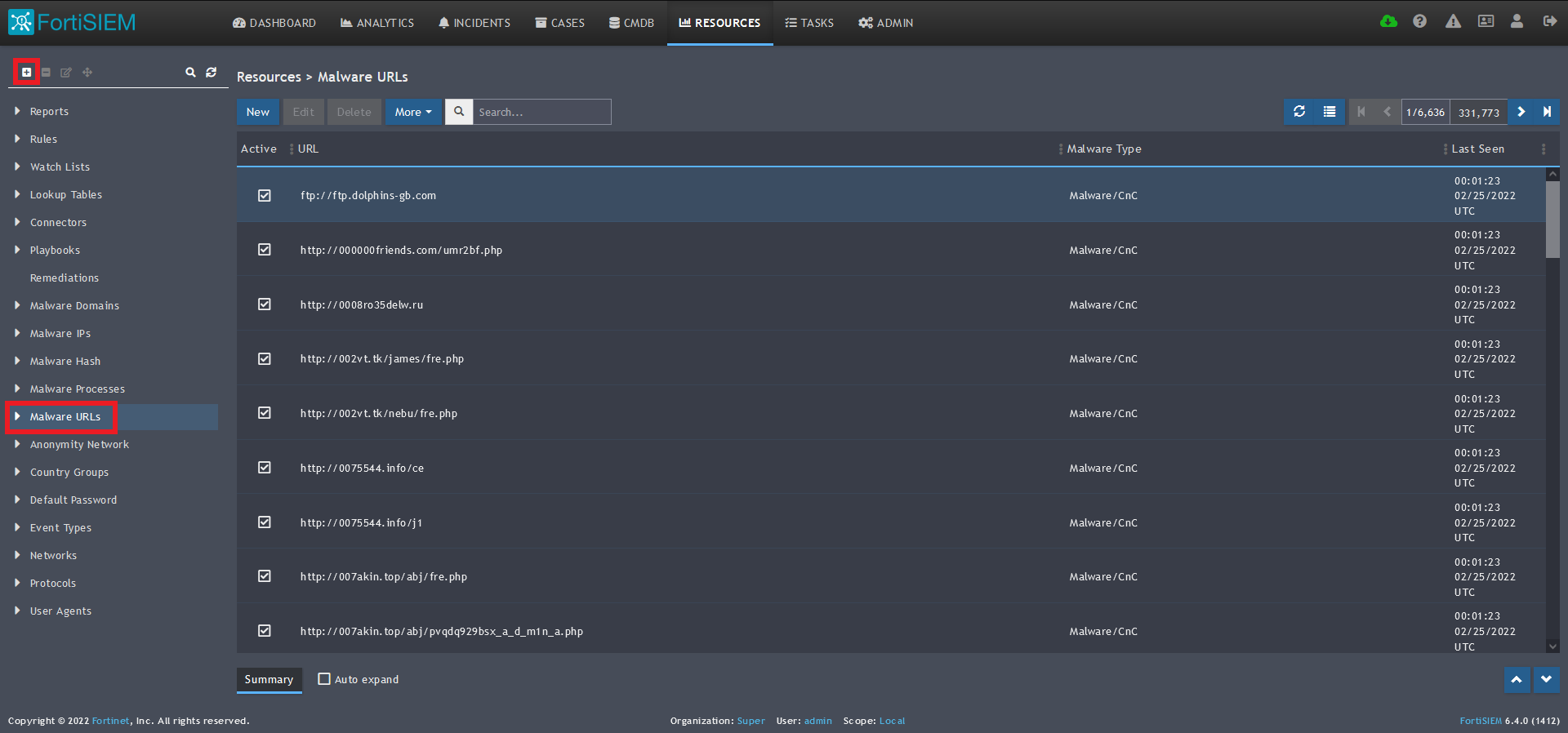

15) To change the columns displayed once the data populates, click on the Select Columns button located beside the refresh button. Use the data mapping information from the setup process for each feed to know which fields are available in the Malware Patrol feed.

If you need any assistance with this FortiSIEM configuration guide, please email support (@) malwarepatrol.net or contact your Account Manager.

?
